13 cm Panel

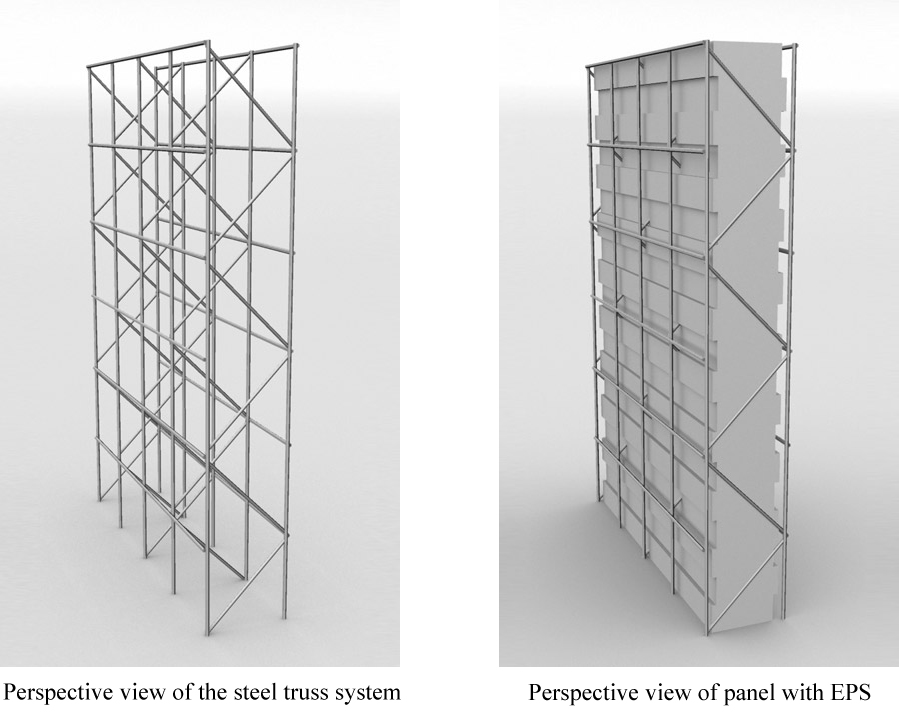

Steel truss system
The steel mesh with 10 x 10 cm grid on both surfaces
The continious diagonal wires connecting steel meshes with 10 cm gaps
100 diagonal wires / m2
Each connection point has 3 weldings
Dimensions: 13 cm x 120 cm x free length
Steel wire
SAE 1006
Tensile strength: 650-750 N/mm2
Diameter: 2,5 - 3,5 mm
Dip galvanised
Thermal Insulation Board
EPS (Expanded Polystrene sheet)
16 kg/m3 density (different densities are possible)
DIN B1 Non flammable class
Grooved surface facilitating the plaster application
Thickness: 10,5 cm
Heat transmission coefficient of 13 cm panel plastered wall:
Ud: 0,48 W/m2K - Ut: < 0,48 W/m2K
