10 cm Panel

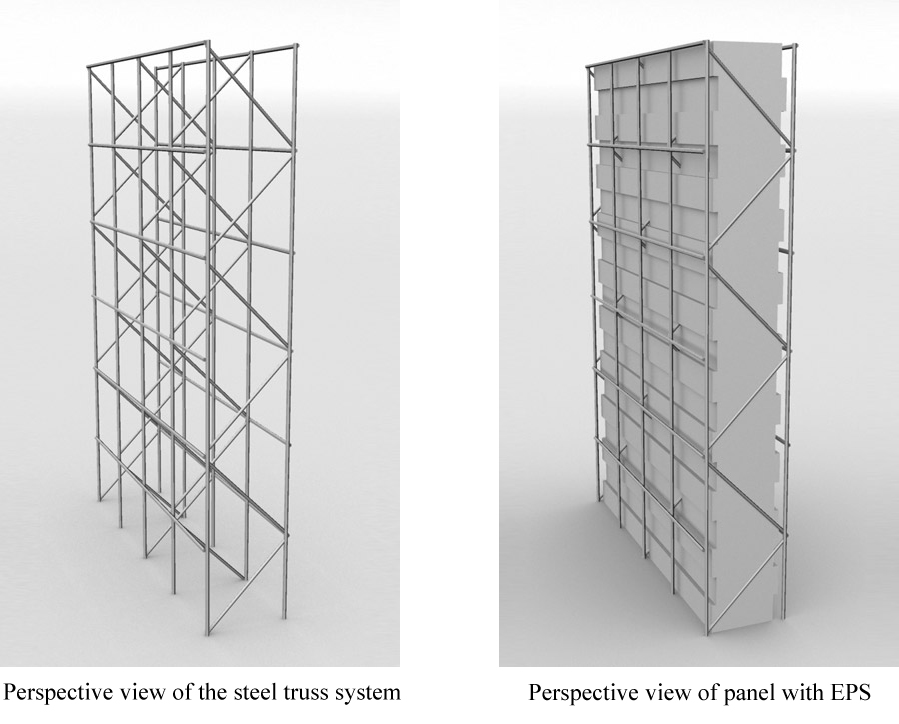

Steel truss system
- The steel mesh with 10 x 10 cm grid on both surfaces
- The continious diagonal wires connecting steel meshes with 10 cm gaps
- 100 diagonal wires / m2
- Each connection point has 3 weldings
- Dimensions: 10 cm x 120 cm x free length
Çevre ve Şehircilik (Bayındırlık) poz numarası : 04.612/7B
Steel wire
SAE 1006
Tensile strength: 650-750 N/mm2
Diameter: 2,8 - 3,5 mm
Dip galvanised
Thermal Insulation Board
EPS (Expanded Polystrene sheet)
16 kg/m3 density (different densities are possible)
DIN B1 Non flammable class
Grooved surface facilitating the plaster application
Thickness: 7,5 cm
Heat transmission coefficient of 10 cm panel plastered wall:
Ud: 0,65 W/m2K - Ut: < 0,65 W/m2K
